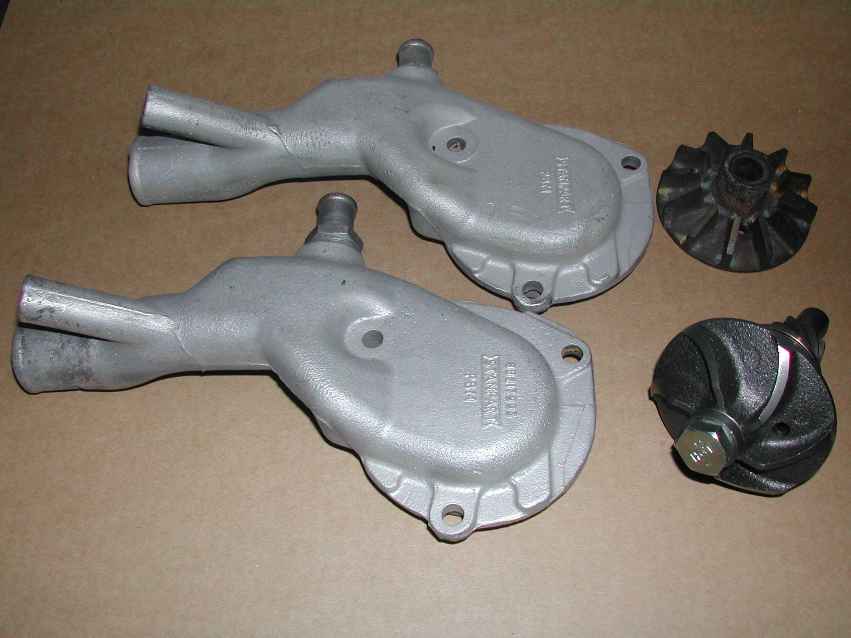

Comparison of 6 & 12 vane pumps & housings
6 & 12 vane pumps

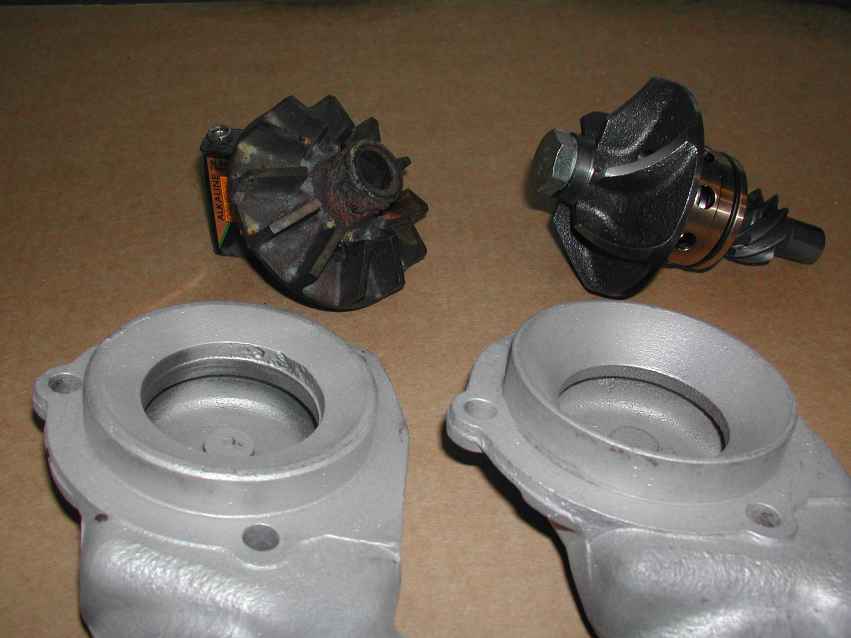

Close-up showing different bevel angle in housings
Bevel angle in housings

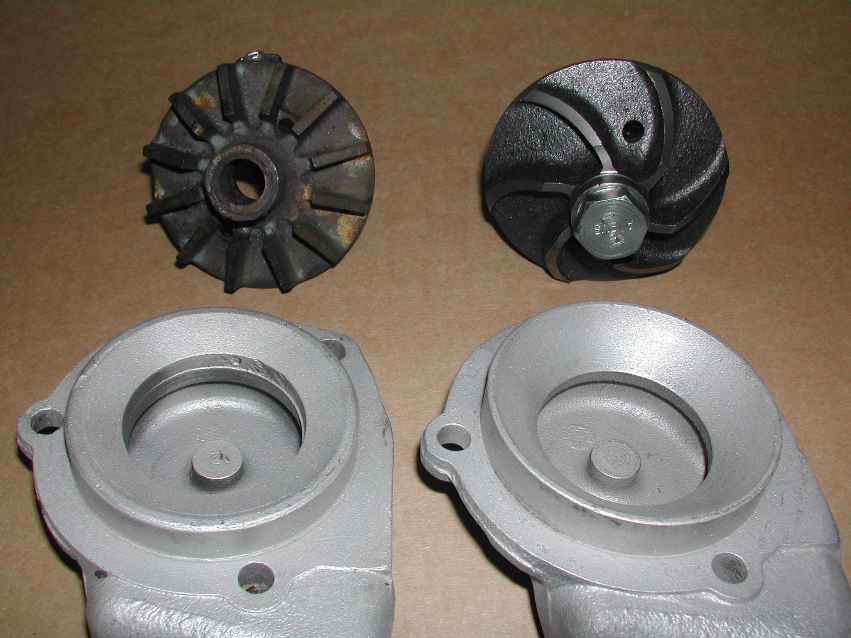

Angle of vanes

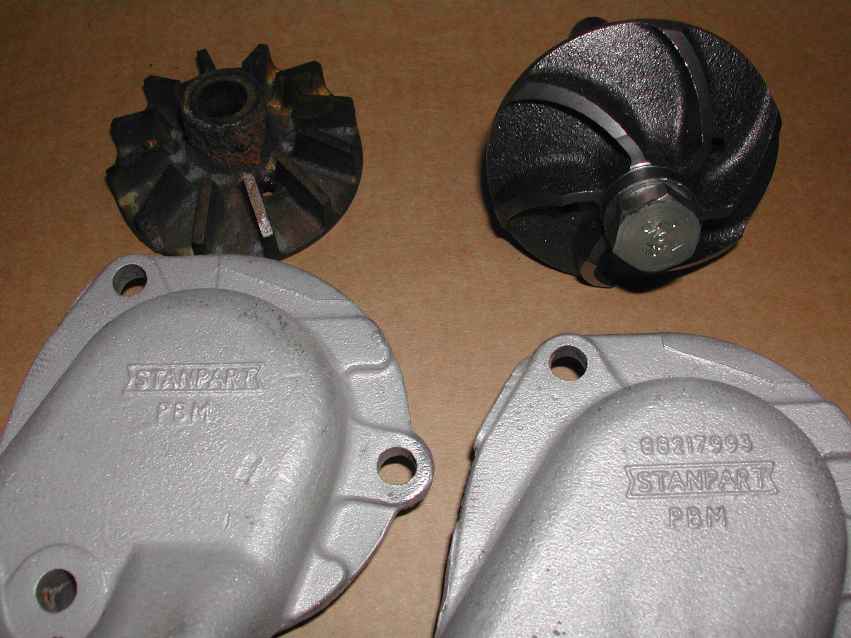

Different printing on housings: the 6-vane has a part number 88217993

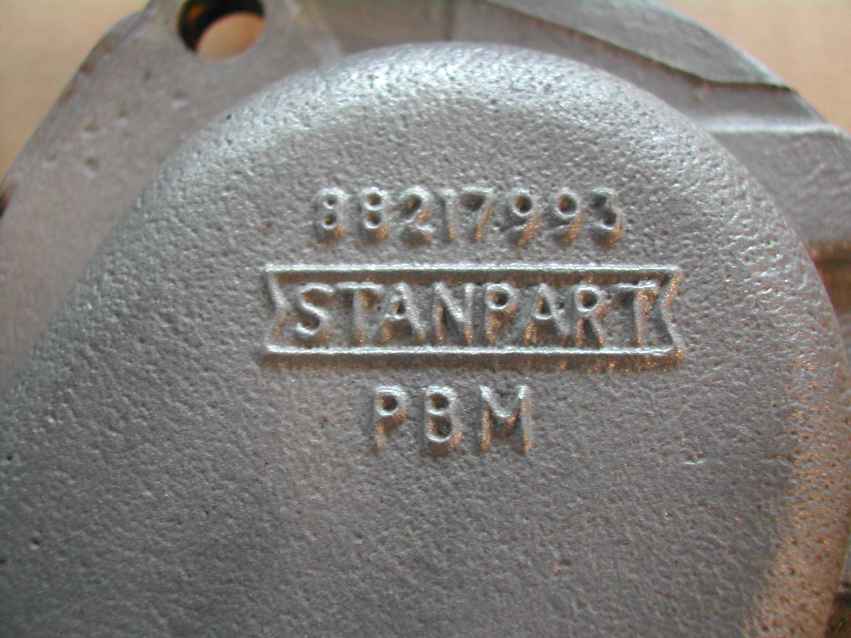

Close-up of 6-vane housing

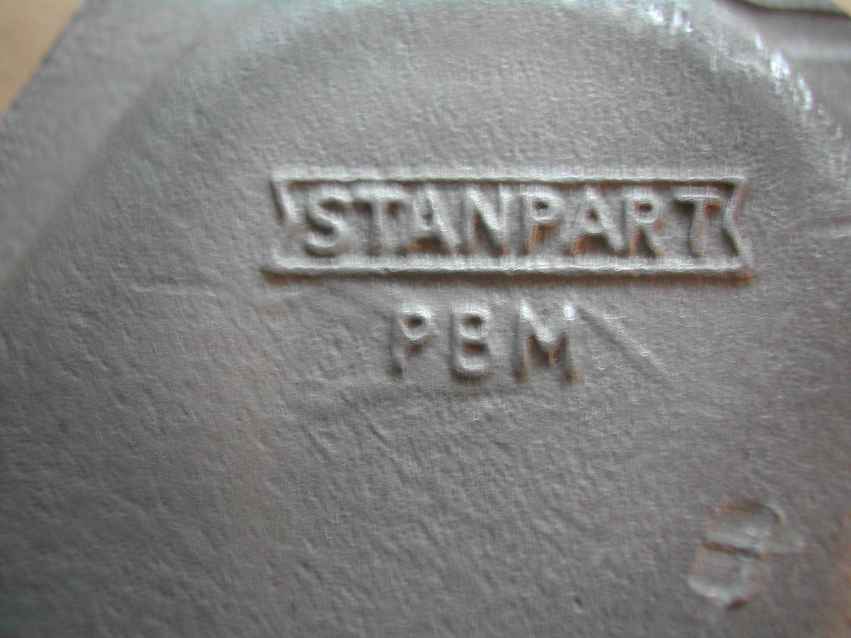

Close-up of 12-vane housing
